X-ray device with high spatial resolution

Plasma technology

On order

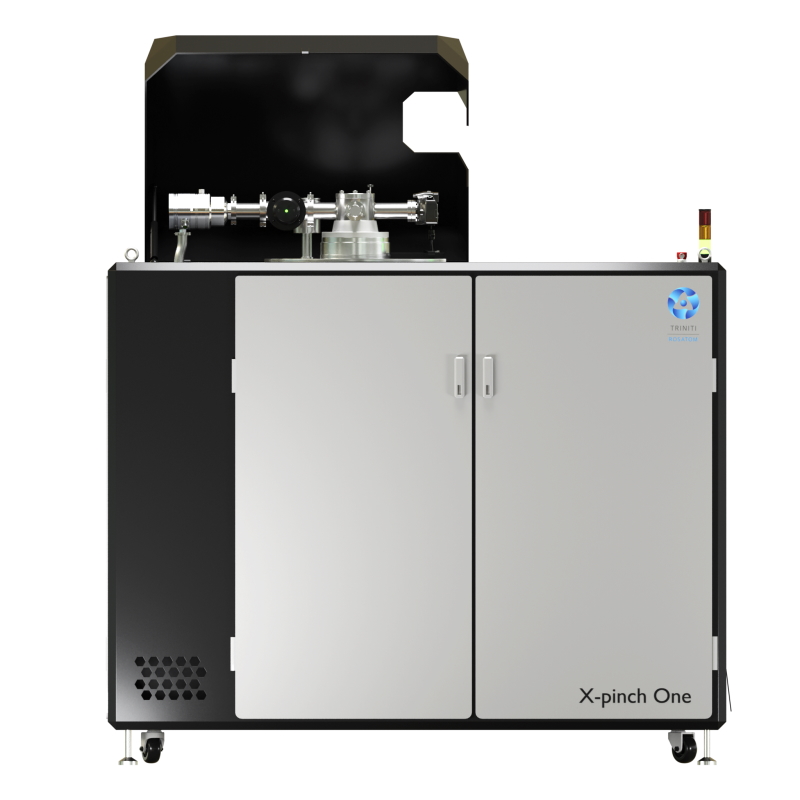

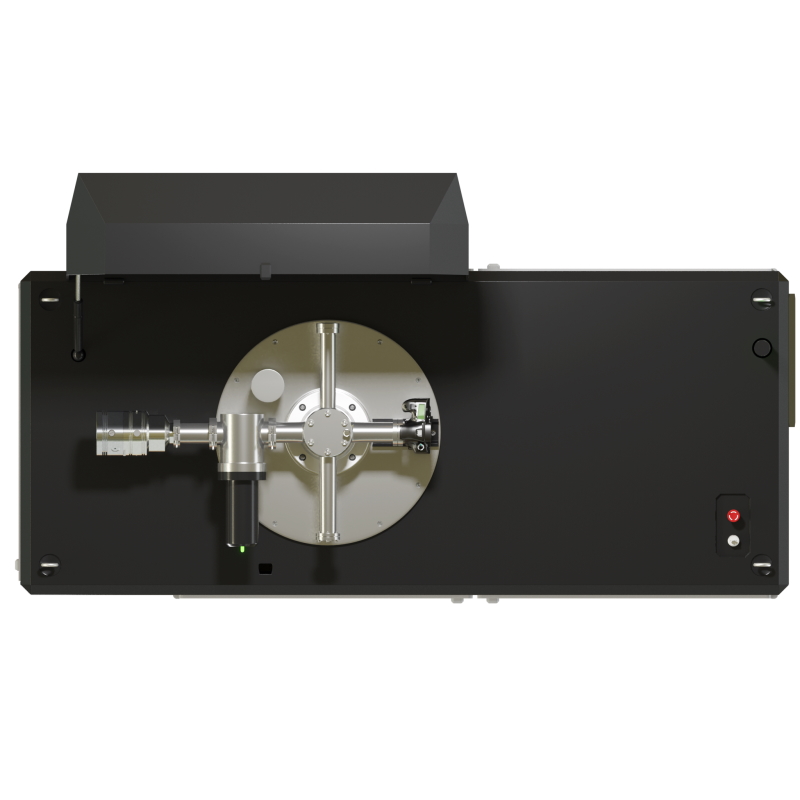

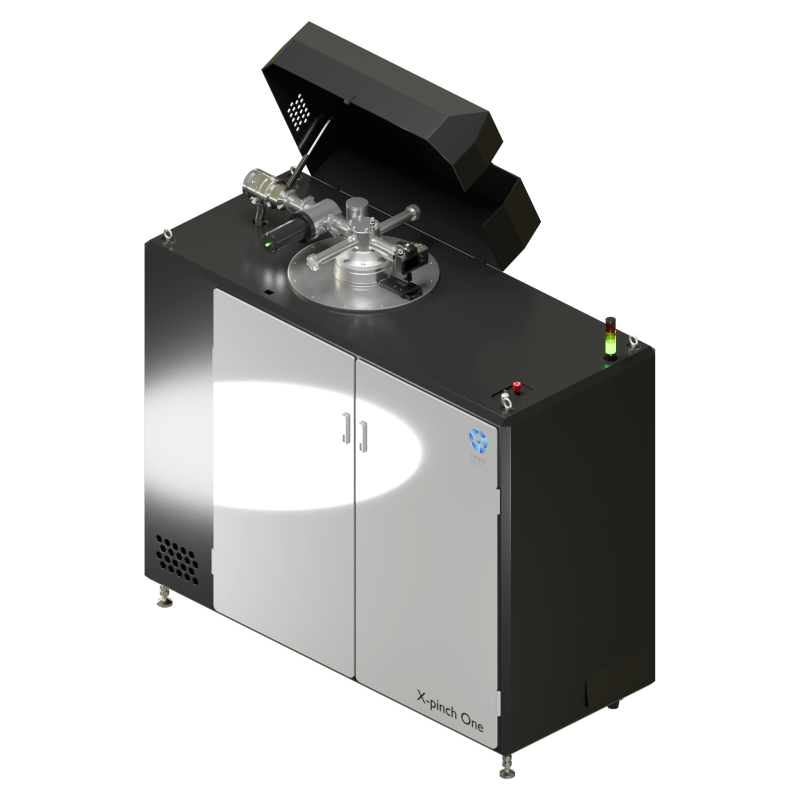

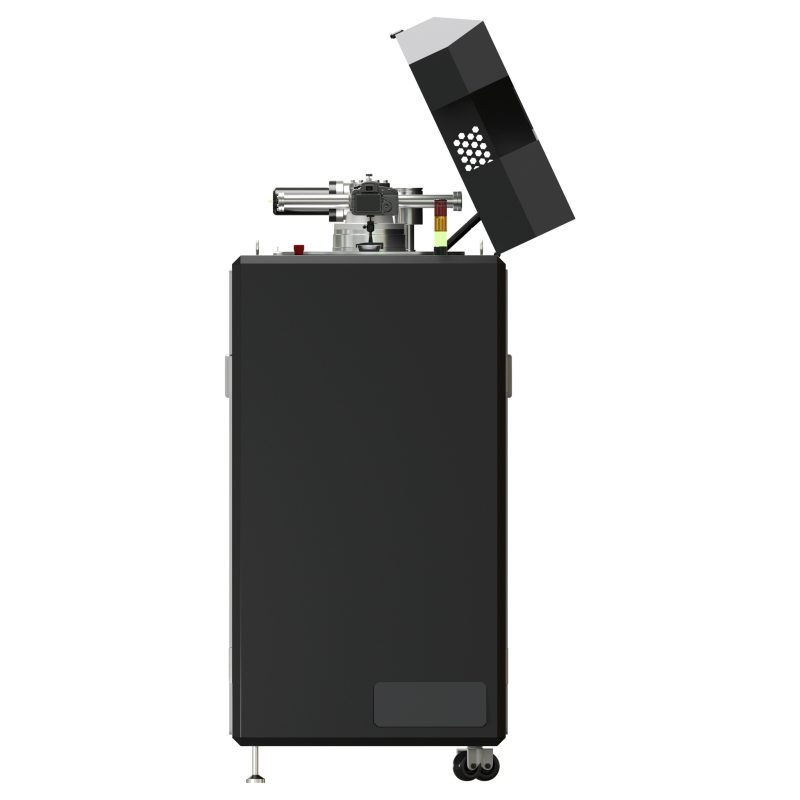

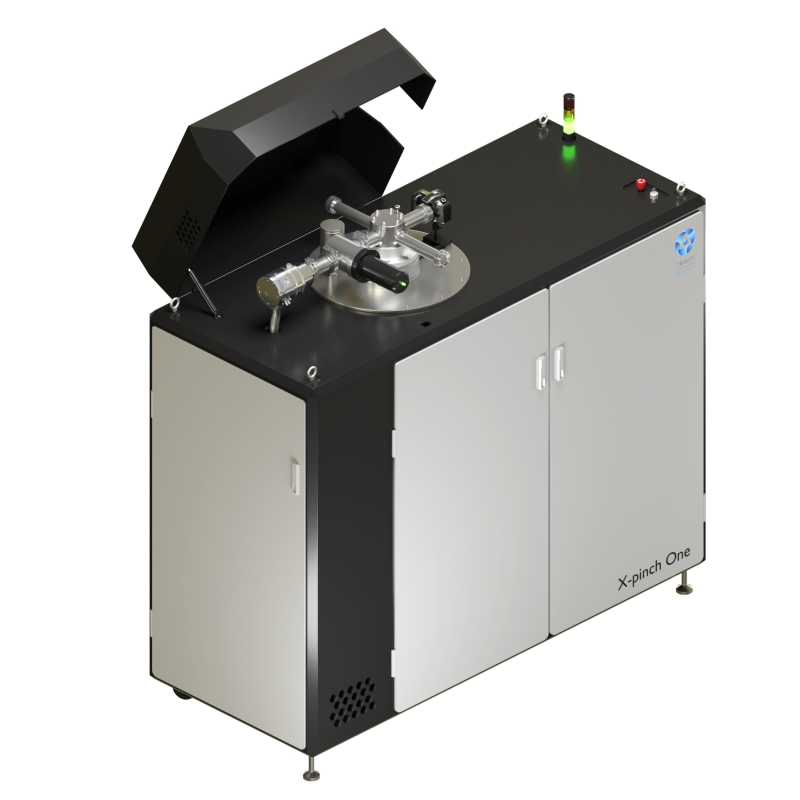

X-ray apparatus with a spatial resolution of 1-2 microns and a flash duration of 1 ns for the study of biological objects with a user-friendly change of the emitter and the observed object.

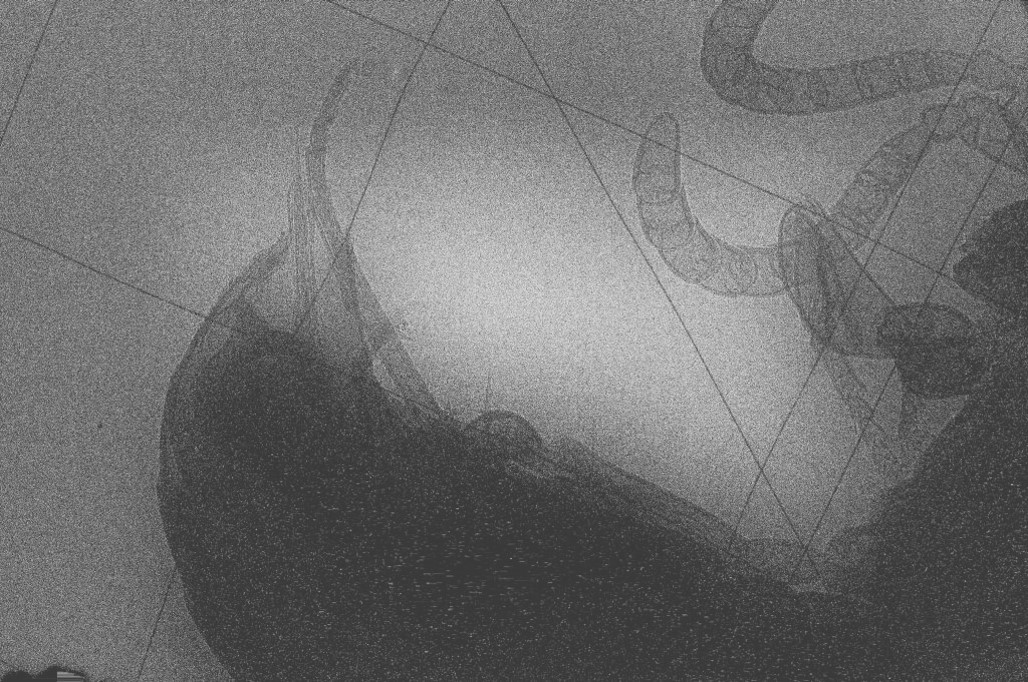

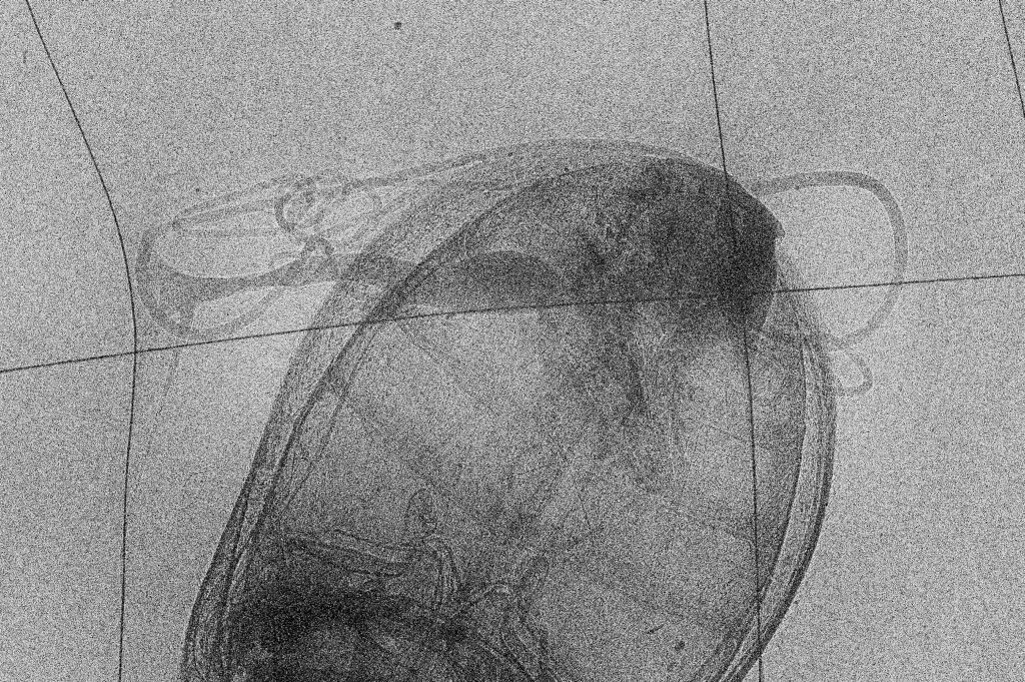

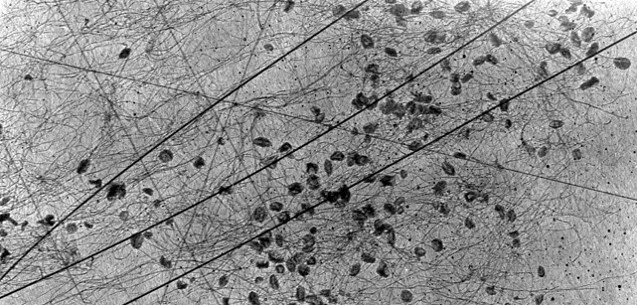

The device is designed for X-ray probing of various biological objects and obtaining their images with high spatial resolution (not less than 2 microns). The samples are not placed in a vacuum, which makes it possible to study living objects in a mode that is safe for their life. Also, the device does not have a destructive effect of electrons on the objects under study. It can also be used for the development of diagnostic techniques for studying dense high-temperature plasma (X-ray cameras and spectrographs, radio emission spectrometers, pinhole cameras, semiconductor and vacuum radio emission detectors, X-ray shadow sensing, etc.)

Application:

  • Research of biological objects;
  • Quality test of thin coatings;
  • Non-destructive testing;
  • Research work in the field of studying thin coatings, their structure and adhesive properties;
  • For educational purposes in biology, medicine, micromechanics, etc.

Specifications:

X-ray source size
X-ray source size
1-2 μm
Flash duration
Flash duration
1 ns
High spatial resolution
High spatial resolution
2 μm
Contrast
Contrast
The device allows you to obtain high-contrast X-rays
Replaceable emitters
Replaceable emitters
Convenient and quick change of the emitter and the examined object
Multiple objects
Multiple objects
Possibility of simultaneous sounding of several research objects at once
Living objects
Transmission of living objects in a regime that is safe for their life
Толщина объектов
Thickness of objects
Transillumination of nondense tissue
