The experimental complex "Angara-5-1" was created in the OFTP JSC "State Research Center of the Russian Federation TRINITY" in 1984.

Since its inception and up to the present time, "Angara-5-1" is one of the largest on the continent installation for research on the physics of fast self-compressed discharges super-terawatt power, dynamics of emitting plasma of multiply charged ions, the problem of inertial controlled fusion.

The complex is an energy base for fundamental research on the equations of state of matter with a high energy density, shock waves, and X-ray spectroscopy.

The complex conducts research on the electrophysics of generators of super-powerful electric pulses, and develops physical schemes of powerful pulsed sources of X-ray and neutron radiation.

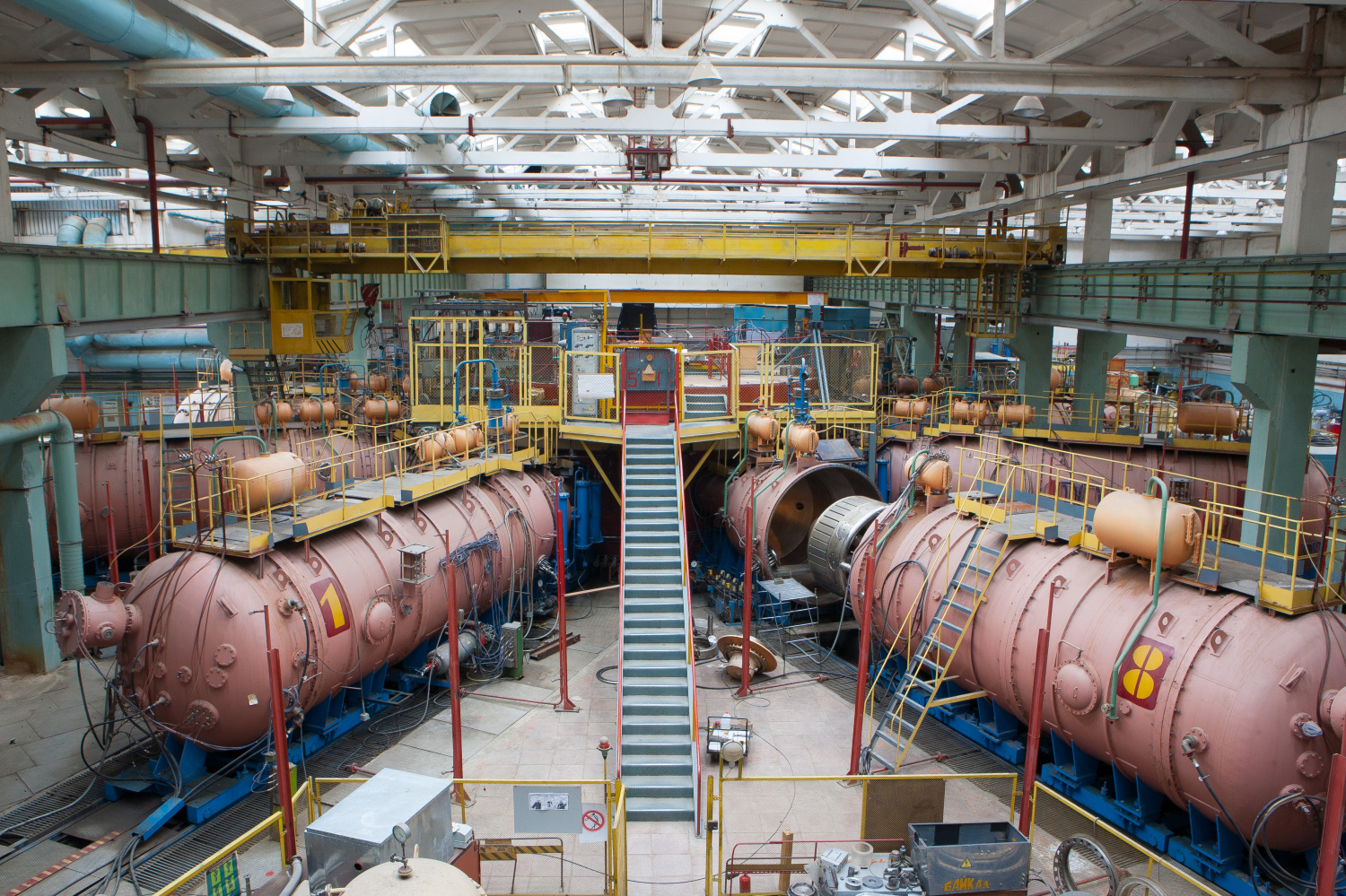

The energy of the complex is provided by a pulse electric power generator, which consists of 8 modular generators connected in parallel using a high-voltage synchronization system.

The reactor chamber of the facility allows experiments with physical activity in a wide range of initial parameters.

In 2000, for the first time at the complex, a double liner scheme was proposed and studied, which under the name "dynamic holraum" has now received worldwide recognition as a driver for initiating a thermonuclear microexplosion by a soft X-ray pulse.

In experiments with a deuterium Z-pinch, a world record of the neutron yield for pinches was obtained. For the creation of the "Angara-5-1" installation, for carrying out a complex of research on the physics of emitting plasma of multiply charged ions, the team of authors was awarded the State Prize of the Russian Federation in Science and Technology for 1997.

Generator parameters of the "Angara-5-1" installation

  • maximum voltage at the matched load 1.5 MV;
  • the voltage pulse shape is a half-sine wave with a half-period of ~ 150 ns;
  • generator wave impedance 0.25 ohm;
  • maximum current in matched load up to 6 MA;
  • power dissipated in physical activity, up to 5 TW;
  • the root-mean-square spread of the response time of the modules is ~ 10 ns.

Regulations for access to research conducted at the Complex

The proposed work should be presented at the meeting of the Scientific and Technical Council of the Institute. On the basis of the decision of the Scientific and Technical Council and the appeal of the work manager to the directorate of JSC "SSC RF TRINITY", a contract for the performance of the work is drawn up. The unit of work is the start-up of the installation with the registration of signals determined by the contract.

The cost of the contract is determined by the Department of Economics and Controlling of the Institute, taking into account the scientific interests of the Institute.

Main directions of research

The experimental complex "Angara-5-1" was created in the OFTP JSC "SSC RF TRINITY" in 1984.

Since its inception and up to the present time "Angara-5-1" is one of the largest on the continent installation for research in the physics of fast self-compressed discharges of super-terawatt power, the dynamics of the emitting plasma of multiply charged ions, the problem of inertial controlled fusion.

The Complex also conducts research on the equations of state of matter with a high energy density, shock waves, and X-ray spectroscopy.

The Complex also conducts research on the electrophysics of generators of super-powerful electrical pulses, and develops physical circuits of powerful pulsed sources of X-ray and neutron radiation.

In 2000, at the Complex, for the first time, a double liner scheme was proposed and studied, which under the name "dynamic holraum" has now gained worldwide recognition as a driver for initiating a thermonuclear microexplosion by a soft X-ray pulse.

n experiments with a deuterium Z-pinch, a world record of the neutron yield for pinches was obtained.

For the creation of the "Angara-5-1" facility, for carrying out a complex of studies on the physics of emitting plasma of multiply charged ions, the team of authors was awarded the State Prize of the Russian Federation in Science and Technology for 1997, the Prize of the Government of the Russian Federation in Physics for young scientists in 2005. For work on compression of wire liners, the head of the Complex received the Prize of the European Physical Society.

List of the main equipment of the Complex and methods used

Registration channels:

  • Oscilloscope channels with an upper frequency of 200 MHz - 80 pcs;
  • Oscilloscope channels with an upper frequency of 500 MHz 12 pcs;
  • Oscilloscope channels with an upper frequency of 1000 MHz - 16 pcs.

Laser equipment:

  • Mozart laser 0.1 J, output radiation power at a wavelength of 532 nm - 6 W, radiation line width - no more than 5 MHz
  • Laser SL233, 0.1 ns, 50 mJ
  • Lasers are included in the VIZAR system and in the system for forming shadow-interference images.
  • This equipment, using the methods and experimental schemes developed at the Complex, makes it possible to determine the flight speed of a solid flyer up to 10 km / s, the structure and density of a plasma object with a resolution of up to 0.1 mm.

X-ray registration:

  • Frame ten-channel recorder СХР6. The registration range is 0.1-3 keV. Duration of exposure 0.5 ns. - 1 PC.;
  • Personnel four-channel recorder. The registration range is 0.1-2 keV. The exposure time is 2 ns. - 2 pcs.

The techniques developed at the Complex make it possible to determine the energy and spectral density in the specified wavelength intervals of the emitting object. The radiation density is determined in any given direction.

Vacuum X-ray diodes with various filters. Registration in the range of 0.03-20 keV. Exposure time 0.3ns, 20 channels. X-ray recorders FDUK - 12 channels.

The techniques developed at the Complex make it possible to determine changes in the spectral composition of radiation with a resolution of 2 ns in the specified spectral intervals.

Calorimeter

  • Integral foil X-ray calorimeter - 2 channels.
  • Integrated foil X-ray calorimeter with incandescent foil - 1 channel.
  • Techniques for comparing calorimeter signals with signals from vacuum X-ray diodes make it possible to calibrate X-ray signals.

X-ray spectral instruments.

  • Crystal spectrographs on mica - 2 channels.
  • Time-resolving spectrograph GIS. Resolution time 3ns., Spectral range 30-400A, registration on CCD or on film.

The developed methods allow one to determine the spectral transparency of the plasma layer heated by the Z-pinch radiation with a time resolution of 1 ns and a spectral resolution of ~ 500 in one run.

Electrical sensors near the load

  • Loop current meters at a distance of 8 cm from the load. Amplitude up to 6 MA, resolution time up to 3 ns.
  • Local single-shot magnetic field meters 0.3-0.4 mm in size. Measurements are taken inside the wire liner, in an area of ​​≈ 1 cm2. Resolution time up to 3 ns., Positioning up to 0.1 mm.
  • Inductive voltage sensor with an amplitude of up to 2 MV, resolution time 1 ns. Registers the voltage at a distance of 8 cm from the load axis. Multiple.

The techniques used at the Complex make it possible to measure the electric power falling on the load and reflected from it, the quality of magnetic self-isolation and the zones of main leaks.

Optical registration. Two high-speed imaging with a resolution time of 0.1 ns. They allow constructing changes in time of the radial and axial images of the object.

Neutron sensors. Integral (silver and indium) neutron sensors. Time-resolving flight technique with a base from 3-50m.
